Heat Cycling System Thermal Oil Heater Boiler For Oil Refinery Industry
Features of thermal oil heater
1. Professional industrialized packing design,stainless steel packingharmonious structure proportion
2. Open door design,convenience for check and maintenance
3. Triple coil,three-pass smoke,fire wrapped in oil structure design, large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
4. Unique tail heating surface design,boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%
5. Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
6. Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
7. Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
8. Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
9. The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
10. Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
Technical parameter of thermal oil heater
| Design parameter | Unit | Date | Date |
| Rated power supply | Kw | 3500 | 4100 |
| Working medium | | L-QD340 thermal conductive oil | L-QD340 thermal conductive oil |
| Circulating oil | m3/h | 200 | 260 |
| Maximum working pressure | MPa | 0.8 | 0.8 |
| Heating surface | radiation | m2 | 26.9 | 28.3 |
| convection | m2 | 141 | 151.4 |
| Economizer heating surface | m2 | 29.9 | 29.9 |
| Maximum working temperature | ℃ | 320 | 320 |
| Furnace media capacity | m3 | 3 | 4.6 |
| Thermal efficiency | η | 90.8%(gas)90.7(oil) | 90.5%(gas)90.3(oil) |
| exhaust temperature | ℃ | 150 | 162 |
| Fuel consumption | Kg/h | 440Nm3/h(gas)359.5Kg/h(oil) | 517.3Nm3/h(gas)425.5Kg/h(oil) |
| Maximum transport size | mm | 7000×3050×3000 | 7000×3250×3200 |
Thermal oil heater boiler application
1. In the road construction project, it is mainly used for heating and insulation of asphalt heating, dissolving, asphalt storage tank, asphalt concrete and emulsified asphalt.
2. In the building materials industry, the heat transfer oil furnace is mainly used for gypsum board drying, concrete member solidification protection and prefabrication production, tile stamping, decorative material drying and linoleum production line heat.
3. In the wood industry, it is mainly used for the hot pressing of fiberboard, particleboard, laminate, plywood, veneer and wood drying equipment, drying equipment, coating equipment and glue machine heating.
4. In the fat industry, the heat transfer oil furnace is mainly used for heating of oil, such as oil decomposition, fatty acid distillation, lipidation, nitrification, hydrogenation reflection, concentration, vacuum deodorization and the like.
Thermal oil heater running advantages
1. High operating temperatures can be achieved under very atmospheric conditions.
2. Satisfy all different temperature heating and cooling process requirements
3. Outstanding energy-saving effect,short installation period, and fast return of Investment.
Superior service
1. 100% safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
6. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Product Tags:
|
|

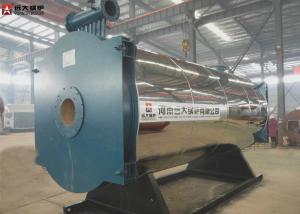

Heat Cycling System Oil Heating Boiler For Oil Refinery Industry Images
|
